A System for Your Needs
Simple to operate, each system is
pre-set and shipped with a sample!
|
|

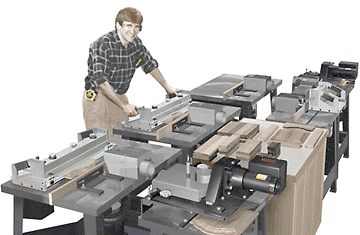

Six Shaper Cabinet Door System for
dedicated production setup - machining raised panel, stiles, rails and tenon.
|
|
single phase system: $39,312
Three Phase System: $38,709
|
|
Ready to run stile and rail crown raised panel doors with 3/4" panel stock
with top raise and partial back raise
|
| |

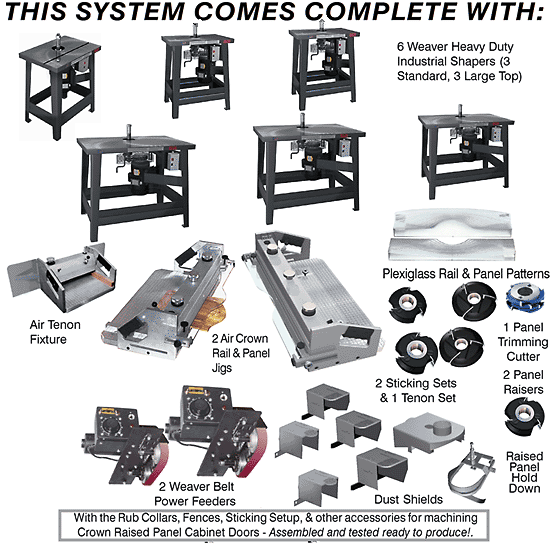

- Weaver Industrial Woodworking Shapers
- all jigs, fixtures, fences and accessories mounted and adjusted
- including Air Tenon Fixture, Shapermaster Crown Door Jigs for curved work, Power Feeders (2) for straight work
- cutters, extra sets of cutters and/or tips
- choose 2 sets of of plexiglass crown door rail and panel patterns
|
|
|
|
|
| FULLY ASSEMBLED DOOR MACHINE SET UP TO RUN - ALL CUTTERS, FENCES ETC ADJUSTED AND IN PLACE - W/DOOR SAMPLE RUN BY YOUR SYSTEM! |
| We configure custom shaper systems - any number of shapers and a wide range of
tasks (door shapers, flooring, drawer fronts, molding, etc). |
6 Shaper System - Dedicated Shaper Production Setup
|
|
| Tenoning Shaper (Tenon Shaper) |
|
| Item# |
Description |
| SH1336 |
Shaper 3HP (1-1/4” Spindle, |
| |
20”x28”top) |
| SHIX38 |
Table Groove |
| BY1LHRE-1-1/4” Bore Rail Head with Tips (3) |
|
| AJ1201RW |
Air Tenon Jig |
| FE5628 |
Tenon Fence |
| DS440 |
Dust shield for Air Tenon |
| WR620 |
Top Wrench |
| WR6180 |
Bottom Wrench |
WD4246
|
Warning disc 4-3/4”OD x 1-1/4”ID
|
| Stile & Rail Shaper (Straight Stile & Rail Sticking) (Sticking Shaper) |
|
| Item# |
Description |
| SH1336 |
Shaper 3HP |
| |
(1-1/4” Spindle, 20”x28”top) |
| BYLHS-1-1/4” Bore Stile Head with BYRD-1LHSE tips (3) |
|
| FE211 |
Sticker Spring Guide |
| FE213H |
Sticker Guide Fence with Hold Down |
| PF721W |
Variable Speed double bond belt Feeder |
| DS443 |
Dust shield for Straight Stiles |
WD4246
|
Warning disc 4-3/4”ODx1-1/4”ID
|
| Panel Raising Shaper (straight raised panel) |
|
| Item# |
Description |
| SH1536 |
Shaper 5HP (1-1/4” Spindle, |
| |
20”x28”top) |
| BYP201LHS |
Raised Panel Cutter Head |
| |
6”ODx1-1/4”ID with tips (3) |
| BYPRBLH |
Partial Under Raiser Cutter Head with tips(3) |
| FE2752801 |
Continuous Offset Raise Panel Guide |
| HD3100 |
Raised Panel Hold Down |
| PF721W |
Variable Speed double-bond belt Feeder |
| DS460 |
Dust shield for Straight Raised Panel |
WD6086
|
Warning disc
|
| Rail & Panel Trimming Shaper |
|
| Item# |
Description |
| SH2536 |
Shaper 5HP |
| |
(1-1/4” Spindle, 28”x40”top) |
| C9936V |
Stacked Rail & Panel Trimming |
| |
Cutter |
| DC312-308-22-3-1/2 - Double O.D. for Trimmer |
|
| FE77 |
Right Half of Split Fence |
| |
w/Depth Bolt |
| DS470 |
Dust shield for Rail & Panel |
| |
Trimming with Shapermasters |
| WD4086 |
Warning disc - |
|
4-1/ 4”ODx1-1/4”ID
|
| Crown Rail Shaper (Crown Rail Sticking) |
|
| Item# |
Description |
| SH2336 |
Shaper 3HP |
| |
(1-1/4” Spindle, 28”x40”top) |
| BY1LHSE-1-1/4” Bore Stile Head with Rail |
|
| |
Quarter Round Insert Knives |
| |
w/Easment (3) |
| DC31630 |
Dead Collar for 4-3/4”WD 3-1/2” |
| |
ODx3-3/4” Height |
| AJ2402 |
Shapermaster 24” x 12” |
| PA2417 |
Plexiglass Patterns - |
| |
1-1/2” Crown Rail & Panel |
| DS470 |
Dust shield for Shapermasters |
| FE78 |
Right Half of Split Fence |
WD4246
|
Warning disc
|
| Crown Panel Raising Shaper |
|
| Item# |
Description |
| SH2536 |
Shaper 5HP |
| |
(1-1/4” Spindle, 28”x40”top) |
| BYP201LHS-1-1/4” Panel Raised Panel Cutter Head |
|
| |
with Insert Tips (3) |
| BYPRBLH Partial Under Raiser Cutter Head with |
|
| |
Insert Tips (3) |
AJ2402
|
Shapermaster 24” x 12”
|
| DC22422 |
Dead Collar for 6-1/4” |
| |
WD - 2-3/4”ODx2-3/4”ID |
| FE78 |
Right Half of Split Fence |
| DS470 |
Dust shield |
WD6086
|
Warning disc - 6-1/4” ODx1-1/4”ID
|
